128 Channel NVR 4K, 16 SATA, RAID
Special Price $5,999.99 Regular Price $6,999.99
In stock
SKU
NVR1284KR
- 128 Channel NVR
- Up to 32MP Cameras
- H.265 / H.264 Video Encoding
- 1280 Mbps Encoding Bit Rate
- Supports Fisheye Security Cameras
- RAID 0/1/5/6/10
- 16 Hot Swap HDD Capacity
- Up to 320TB
- Supports iSCSI
- 4x HDMI Outputs
Enterprise level network video recorder that supports 128 Channels up to 32MP resolution. You can use it to connect IP cameras on the network, or attach channels from our DVRs and NVRs to consolidate your security camera system in to one recorder. With this NVR you can use up to 128 IP cameras at user-selectable resolutions, including our popular 4K security cameras. For guaranteed compatibility we recommend the use of Avalonix IP Cameras from CCTV Camera World as they have been tested to work with our recorders. You can also use ONVIF compatible network cameras as well, however compatibility varies depending on the manufacturer and ONVIF version. Unfortunately it is impossible to guarantee compatibility with any 3rd party cameras.
Enterprise Features

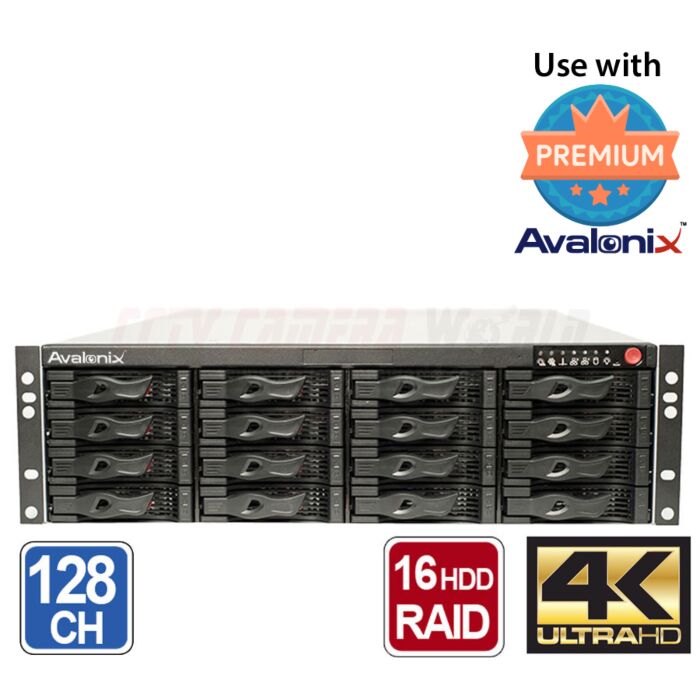

This 4K NVR recorder is housed within a 3U Rack Mountable Server Case that is fit for use in a server rack that is at least 22" deep. There are 16 hot swap hard drive bays for easy access to the internal hard drives. Each bay accepts up to 20TB DVR hard drives for a total capacity of 320TB. You can't have this much storage and not have disk redundancy. This recorder has all the bells and whistles of a real server. It offers multiple RAID configurations 0/1/5/6/10 which are perfect for use with high density video storage inside this NVR. To ensure that footage from each of the 128 cameras is recorded, the friendly user interface allows you to group camera recordings to specific hard drives, or hard drive groups. This way data encoding can be spanned and hard drive speeds will not be a bottle neck in saving multiple streams of video.
This NVR is designed for enterprise use, featuring four HDMI video outputs. These outputs can be configured to display either the same camera feed on all screens or different camera feeds on each output simultaneously. You can span different cameras across multiple monitors to keep an eye on your property, this is a feature never before seen in a standalone NVR.
Recording Capability
This 128 Camera Network Video Recorder supports any combination of the following resolution cameras up to a maximum of 128 cameras. You can mix and match cameras up to 32 MP resolution. By choosing this NVR, you will future proof your system to support the highest resolution possible at this time in 2024 for IP cameras.
It offers a total recording bandwidth of 1280Mbps when used with Avalonix Premium IP Cameras that provide AI detection by the camera and are guaranteed to be compatible with this NVR.
Storage Capacity
This is a 3U rack mountable case that has all the bells and whistles that even a PC based NVR cannot provide. It has16 hot swap hard drive bays that allow for DVR hard drives up to 20TB each, for a total of 320TB. It also features enterprise grade hard drive redundancy; utilizing RAID, the user can set up safeguard against data loss. You can also choose to record video in JBOD mode, where each drive is written to once it is filled, or span across drives/groups.
Video back-up is easy using the USB 3.0 ports on the back of the NVR for short video segments. You can even do live backups by recording the NVR to a NAS using FTP, or to another Avalonix NVR.
Motion Detection
The NVR can receive motion alerts when using Avalonix IP cameras and compatible ONVIF cameras so you can record on motion, or record all the time with a motion log. You can also connect this 128 channel NVR to sensors using its alarm input connections, and attach devices like motion sensors, PA speakers, sirens and strobe lights to its alarm panel on the back. It comes equipped with 32 alarm input connections and 16 relay outputs. You can receive motion alerts via email based on events triggered by video based motion detection or hardwired sensors. You can even receive Push Alerts to your Smartphone for motion or alarm events without any monthly charges.
AI Video Analytics
The NVR stands apart from the competition based on its ability to not only accept video analytics from compatible Avalonix cameras but also perform a certain number of video analysis on video streams from compatible ONVIF based 3rd party cameras. While testing is required by you to determine if your 3rd party cameras are compatible; if they are compatible, the NVR can provide video analytics such as tripwire, intrusion box detection, and Smart Motion Detection on those cameras. Using AI event detection by recorder does reduce the total recording bandwidth to 640 Mbps, which is still sufficient to record 64 of 12MP cameras at 15fps using H265.
Remote Viewing
Remote viewing over the web using a mobile device or PC computer is standard for all of the Avalonix DVRs and NVRs. Using the built-in web server on the recorder, you can log in using a web browser on a PC or Mac without needing any plugins to be installed, Smart Phone or Tablet, or the included Free Central Monitor Software on a Windows computer. All of our remote viewing apps and computer software are free and do not incur any additional monthly charges. Your security camera system from CCTV Camera World will be accessible from anywhere in the world.
Redundant Power Supply
In addition to storage redundancy, this professional NVR recorder also has a redundant power supply to ensure uninterrupted operation. The redundant power supply design allows the user to swap out one of the failed power supplies without any downtime.
Features
- Rack Mountable 128 Channel 4K NVR
- H.265, H.264 Video Encoding with Dual Stream Support
- H.265 encoding provides up to 50% savings in bandwidth when used with a H.265 IP camera
- Up to 1280Mbps recording bandwidth when used with Avalonix Premium Cameras
- Supports IP cameras up to 32 Megapixels in resolution
- Select individual resolutions per channel
- IP Search Function allows easy detection of compatible IP cameras on the same network
- Compatible with Avalonix Premium Series IP cameras
- Up to 64 channel Live Grid Display
- Recorded video grid views dependent on camera resolutions
- (4) HDMI video outputs
- Support identical video output ranging from 4K to 8K
- Support heterogeneous video output at up to 4K
- Email Notification of motion alerts, alarm alerts, or video loss to mobile App
- Push Alerts for motion or alarm events
- Multiple recording methods: continuous, manual, motion activated or schedule based
- Intelligent video analytics when used with Avalonix cameras with Smart Detection features:1
- SMD (Smart Motion Detection)
- Tripwire
- Intrusion Box
- Abandoned/Missing Object
- Face Detection
- Face Recognition
- People Counting
- Heat Map
- Audio Detection 2
- AI video analytics by recorder of 3rd party cameras
- 8 channel face detection and recognition, up to 40 face databases and 300,000 face images
- 8 channel metadata
- 32-channel perimeter protection
- 32-channel SMD Plus
- 360 Degree or 180 Degree Fisheye Camera Dewarp Feature
- Remotely playback and download recorded video using PC Software, or Smart Phone App
- Remotely backup video to FTP, NAS, windows computer, or mirror to another NVR unit
- Allows easy video backups to USB drive
- 16 Hot Swap SATA HDD Bays, 20TB each max
- 320TB Total HDD Capacity
- Supports RAID 0/1/5/6/10 with Hot Swap Capability
- Plug-in free web browser based viewing compatible with Chrome, Safari, Edge, Firefox3
- Free Computer Client Software for remote viewing via Windows PCs
- (4) 2.5Gbps RJ45 Network Ports
- 1024Mbps Max Outgoing Bandwidth - Allows multiple simultaneous viewers to view or playback video remotely
- Rack Mountable 3U Case with 3rd party rail set
- ONVIF 22.06 T/S/G Support
1. Smart Event Detection based on camera capabilities. Avalonix PoE camera with Smart Event Detection capability required. Please check the product description of the camera to review its event detection capabilities.
2. Avalonix PoE camera with Audio Detection required.
3. HTML5 browsers limit features available in the web interface of the NVR. Plug-in installation on Windows allows access to all the features available in the web interface, such as video download.
What's Included?
- (1) 128 Channel Professional NVR
- (2) Power Cord
- (1) Mouse
- (16) Hot Swap Trays
Specifications
| Model | NVR1284KR v2 | |||
| System | ||||
| Main Processor | Industrial embedded micro-processor | |||
| Operating System | Linux Proprietary | |||
| Video & Audio | ||||
| IP Camera Input | 128 channel | |||
| Two-way Talk | 1channel Input, 1channel Output, RCA | |||
| Display | ||||
| Interface | 4 HDMI (HDMI 1&2 up to 3K, HDMI 3 up to 8K, HDMI 4 up to 1080P 2 VGA up to 1080P Simultaneous Mode: Outputs video to all HDMI1-4 and VGA1-2 ports at the same time.
Heterogeneous Mode: Outputs video to VGA1 and HDMI1, or VGA2 and HDMI2 at the same time, and to HDMI1-4 with different video sources.
|
|||
| Multi-screen Display | Main screen: 1/4/8/9/16/25/36/64 | |||
| Sub screen: 1/4/8/9/16/25/36 | ||||
| OSD | Camera title, Time, Video loss, Camera lock, Motion detection, Recording | |||
| Display Decoding | AI by Camera: 2-channel: 32 MP @ 30 fps, 2-channel: 24 MP @ 30 fps, 4-channel: 16 MP @ 30 fps, 5-channel: 12 MP @ 30 fps, 8-channel: 8 MP @ 30 fps, 11-channel: 6 MP @ 30 fps, 12-channel: 5 MP @ 30 fps, 16-channel: 4 MP @ 30 fps, 32-channel: 1080p @ 30 fps, 128-channel: D1 @ 30 fps AI by NVR: 1-channel: 32 MP @ 30 fps, 1-channel: 24 MP @ 30 fps, 2-channel: 16 MP @ 30 fps, 2-channel: 12 MP @ 30 fps, 4-channel: 8 MP @ 30 fps, 5-channel: 6 MP @ 30 fps, 6-channel: 5 MP @ 30 fps, 8-channel: 4 MP @ 30 fps, 16-channel: 1080p @ 30 fps, 80-channel: D1 @ 30 fps |
|||
| Recording | ||||
| Video Compression | Smart H.265+; H.265; Smart H.264+; H.264 | |||
| Audio Compression | G.711a; G.711u; PCM; G726 | |||
| Resolution | 32 MP, 24 MP, 16 MP, 12 MP, 8 MP, 6 MP, 5 MP, 4 MP, 3 MP, 1080p, 960p, 720p, D1, CIF | |||
| Record Rate | AI disabled: 1280 Mbps incoming, 1280 Mbps recording and 1024 Mbps outgoing AI enabled: 640 Mbps incoming, 640 Mbps recording and 512 Mbps outgoing |
|||
| Record Mode | Manual, Schedule (Regular(Continuous), MD (Video detection: Motion detection, Camera blank, Video loss), Alarm), Stop, Smart Detect (Tripwire, Intrusion, Abandoned/Missing Object, Scene Change, Face Detection, Face Recognition, People Counting, Heat Map, Audio Detect) | |||
| Record Interval | 1-120 min (default: 60 min), Pre-record: 1-30 sec, Post-record: 10-300 sec | |||
| Video Detection & Alarm | ||||
| Trigger Events | Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips | |||
| Video Detection | Motion Detection, MD Zones: 396(22×18), Video Loss & Camera Blank | |||
| Alarm Input | 32 Channels, low level effective, green terminal interface | |||
| Relay Output | 16 Channels, NO/NC Programmable, Green Terminal Interface | |||
| Playback & Backup | ||||
| Playback | Up to 16 Channels over HDMI (according to limits of Display Decoding) | |||
| Search Mode | Time/Date, Alarm, MD & Exact search (accurate to second) | |||
| Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow play, Next file, Previous file, Next camera, Previous camera, Full screen, Repeat, Shuffle, Backup selection, Digital zoom | |||
| Backup Mode | USB Flash Drive, Network, FTP for Live Backup | |||
| Network | ||||
| Interface | 4 RJ-45 ports (10/100/1000/2500 Mbps) | |||
| Ethernet Port | 4 Ethernet ports | |||
| Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE, DDNS, FTP, Alarm Server, IP Search (Support Avalonix IP cameras, DVR, NVR) | |||
| Max. User Access | 30 users | |||
| Smart Phone | iPhone, iPad, Android | |||
| Storage | ||||
| Internal HDD | 16 SATA III ports, 20TB ea, up to 320TB. Limited by ambient temperature | |||
| HDD Mode | Single (JBOD), Raid 0/1/5/6/10 | |||
| Auxiliary Interface | ||||
| Front cover | Flip down cover with hot swap bays | |||
| USB | 4 USB ports (2 USB2.0, 2 USB3.0) | |||
| eSATA | 1 eSATA port for eSATA expander | |||
| RS232 | 1 port, For PC communication & keyboard | |||
| RS485 | 2 (1 port for half-duplex serial communication, 1 port for full-duplex serial communication) | |||
| General | ||||
| Power Supply | AC100V-240V, 50-60Hz | |||
| Redundant Power | Yes | |||
| Power Consumption | Less than 25W (Without HDD) | |||
| Working Environment | 14°F - +131°F, 10% - 90% RH | |||
| Dimension(W×D×H) | 19.1" x 20.2" x 5.2" | |||
| Weight | 36 lbs (without HDD) | |||
| Installation | Rack Mountable 3U | |||
| Recording Resolutions | 16MP,12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P |
|---|---|
| Total Incoming IP Bandwidth | 1280 Mbps |
| Total IP Recording Bandwidth | 1280 Mbps |
| eSATA Port | One |
| USB Ports | (2) USB 2.0, (2) USB 3.0 |
| Video Outputs | (1) HDMI, (1) VGA, (1) HDMI Spot |
| Power Input | 110-220V AC Redundant |
| Rackmountable | Yes, 3U |
| Number of Audio Inputs | 128 IP Streams |
| Encoding Supported | H.264, H.265 |
| Number of PoE Inputs | None, uses network for connection |
| Max Hard Drive Capacity | 16HDD, 160TB |
| Hot Swap HDD | Yes |
| RAID Redundancy | Yes, RAID 0/1/5/6/10 |
| Warranty | 1 Year |
| Recorder Type | NVR |
| CPU | Intel i7 |
| Total Cameras Supported | 128 |
| Supported Camera Signals | IP |
| Number of BNC Inputs | Does Not Support BNC Cameras |
| Number of IP Cameras Supported | 128 |
| Total PoE Power | No Built-in PoE Ports |
| Brand | Avalonix |
| Return Policy | 30 Days Return Policy |
