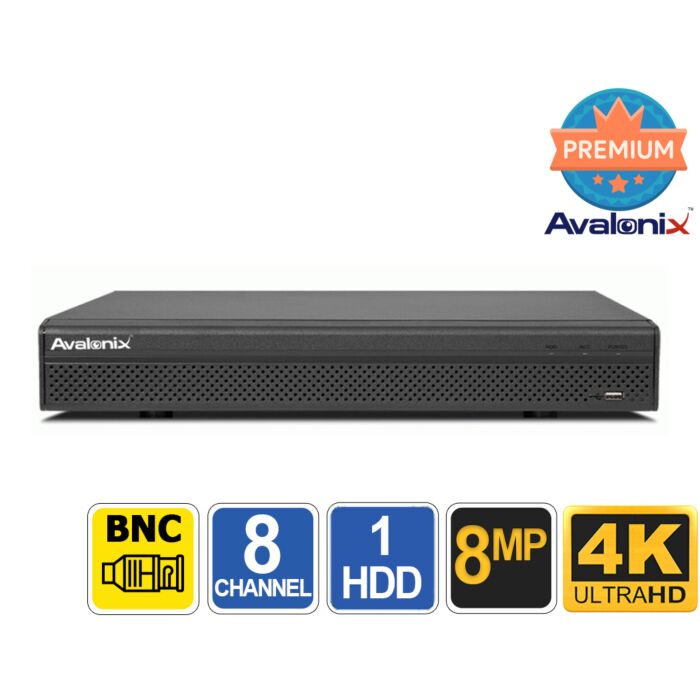

8 Channel 4K Security DVR
- 16 Channels Total
- Supports 8 BNC + 8 IP Cameras
- Up to 8MP 4K Resolution Cameras
- 8 BNC Channel AI Video Detection
- 1 RCA Audio Input
- Audio over Coax or IP
- Up to 16TB
- HDMI/VGA Video Out

This 8 Channel DVR is compatible with a wide array of camera resolutions and signal types. It is a powerful hybrid DVR that supports up to 4K security cameras over RG59U coax cabling. Even if you have cameras purchased elsewhere, you can use them with this DVR as long as they meet the resolution and signal types supported by this DVR. This 4K security DVR supports a combination of five security camera signal types, which can be found here. These five types include HDCVI, TVI, and AHD coax cameras that can send high definition video over Siamese security camera cable. You can also use IP cameras purchased from CCTV Camera World to setup a hybrid security camera system consisting of coax BNC cameras and network cameras.
As explained in our Security Camera Buying Guide, in the past IP cameras were required if you wanted resolutions greater than 1080P. That is no longer the case thanks to HD security cameras over coax, which make it possible to send 4MP or 4K video over good quality coax wire. HD over coax cameras are great for use in upgrading existing camera systems or in new security systems where you want to avoid the complicated computer networking that's associated with IP cameras. If you are looking for a complete system, be sure to check out our security camera systems page.
This 8 Channel 4K Security DVR is one of the best the security industry has to offer at this time for a small form factor with one hard drive slot. It can accept a total of 16 cameras (8 BNC Cameras and 8 IP Cameras). It allows the use of 5 different types of security camera technologies:
- Analog Security cameras up to 960H resolution - old security cameras will work.
- HDCVI cameras up to 8MP on any BNC input on the back of the DVR
- AHD or TVI cameras up to 8MP on the BNC inputs
- IP Cameras up to 8MP 4K Resolution. Using IP cameras requires a PoE switch to network the cameras with the DVR.

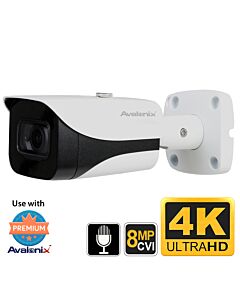

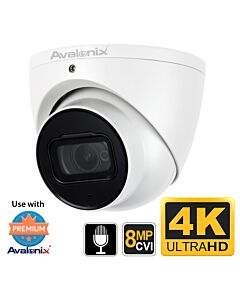

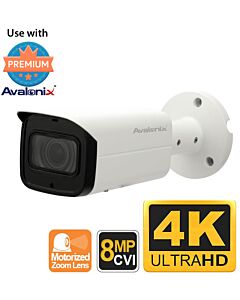

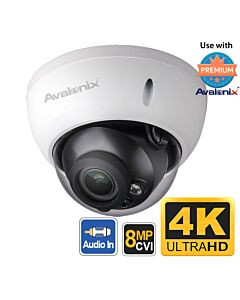

Take advantage of the selection of 8MP 4K HD Coax cameras listed below with this 4K DVR!
This 4K Security DVR supports a lot of different recording configurations.
If you connect the DVR to a PoE switch, you can also connect up to 8 IP cameras from CCTV Camera World along with 8 BNC cameras. By disabling the BNC inputs, you can also set the DVR to record IP cameras across all 16 available channels, making it essentially a NVR. In this mode, the DVR will support a total of 128 Mbps of network camera encoding bandwidth.
It supports one hard drive up to 16 TB, providing plenty of storage space for recording footage.
This 8 channel XVR has a high speed
processor with an embedded Linux operating system that stays free of viruses. It comes with the same great user interface as all of our other DVRs and
uses H.265+ encoding to record video at great quality while saving up to 50% more storage space compared to regular H.264.
It does not sacrifice any of the features or reliability that our larger, more expensive DVRs offer. You can use PTZ cameras of either HDCVI or IP camera type with this DVR. You can also add our security camera with built-in audio across all BNC channels or our IP cameras with built-in mics.
The XVR allows its users to take advantage of cutting-edge AI Smart Detection analytics such as Smart Motion Detection, Digital Tripwire, and Intrusion Detection on the BNC cameras that are connected. You can choose one AI event detection method per channel on up to 8 of the BNC channels.
The XVR allows for Tripwire and Intrusion Detection features, enabling you to optimize video event detection using the advanced AI technology built into this DVR. Alternatively, you have the option to use Smart Motion Detection for up to 8 channels, which excels at identifying humans and vehicles while ignoring irrelevant objects like leaves, insects, or shadows compared to traditional video-based detection. The XVR is compatible with the Avalonix Premium Series IP cameras and supports video analytics across all IP camera channels as long the camera offers analytics.
Additionally, the XVR provides Face Detection support for up to 2 BNC channels, allowing the system to identify and record faces within the camera's field of view. This added feature enhances security by making sure critical events are documented in areas where people have to pass through entrances, exits, or specific pathways. To effectively capture a face, it should occupy at least 50% of the camera's field of view.
Either motion or smart detection can be set to notify you using a push alert to your mobile device when an event is detected, and you can also playback video from your phone or tablet.
With your purchase, you'll receive free technical support for the life of the product, as well as FREE iPhone, iPad, Android, and Windows/Mac apps. Check out our apps in action here.
Features
- 8 Channel 4K DVR
- Supports any combination of BNC cameras or IP Cameras up to 16 channels
-
Pentabrid DVR supports:
- HDCVI cameras up to 8MP
- TVI or AHD up to 8MP
- Analog CCTV Cameras up to 960H
- IP Cameras up to 8MP
- Compatible with Avalonix Premium Series IP cameras1
- Latest H.264 and H.264+ Video Encoding
- 128Mbps Total encoding bit rate for 16 IP channels
-
HDCVI Recording Rates per channel
- 7fps 4K 8MP
- 10fps 6MP
- 12fps 5MP
- 15fps 4K-N/4MP/3MP
- 30fps 4M-N/1080P/720P/D1
-
Multiple Audio Input Capabilities
- Audio over HDCVI using HDCVI camera with built-in mic
- Audio over IP camera stream using IP cameras with built-in mic
- (1) RCA Audio Input for security camera microphone
- FREE Windows / Mac Central Monitoring Software for viewing multiple systems over the network
- FREE Phone Apps for remote viewing on iPhone, iPad, and Android devices
- Plug-in free web interface compatible with Chrome, Edge, Firefox, Safari browsers
- Selectable motion detection zones and privacy masking
- Selectable motion sensitivity to minimize false motion events
- Multiple recording methods selectable for each individual camera
- 24/7 Continuous recording
- Calendar Day & Time based recording
- Motion Activated Recording triggers one or multiple cameras to record when DVR senses the video change
- Selectable motion detection zones and privacy masking
- Selectable motion sensitivity to minimize false motion events
-
AI Video Analytics
on BNC Cameras
- Smart Motion Detection (SMD) on up to 8 BNC channels support human body and vehicle filtering
- Tripwire, or Intrusion Detection on up to 8 BNC channels
- Face Detection to detect and record when a face is present on up to 2 BNC channels. Up to 12 face images per channel. Note this is not facial recognition.
- AI Video Analytics on up to 8 IP Cameras1
- Full set of controls (all free of charge) when remotely viewing over internet using a computer:2
- View Live Video from all 32 Cameras in a grid or each camera individually
- Playback recorded video from cameras in a grid or each camera individually
- Backup video segments over internet on to your computer
- Bandwidth Management for slow internet connections so smaller images are displayed faster
- Supports up to 20 remote viewers simultaneously
- Motion activated push notifications to mobile devices without monthly charges
- P2P, DDNS Support
- Advanced User Rights Management: Supports multiple user accounts with selectable authorization levels
- Auto Hard Drive Overwrite to rewrite over hard drive
- Easy video backup to USB drive, NAS, or FTP
- Supports 1 Hard Drive up to 16TB
- Identical Video Outputs
- (1) 4K High Definition HDMI - Main Out
- (1) VGA 1080P connection - Main Out
1. DVR compatible with Avalonix Premium Series IP cameras only. PoE switch required for using IP cameras. Video analytics such as tripwire, intrusion box, and Smart Motion Detection supported on up to 8 IP channels. IP cameras must have built-in AI video analytics for recording on the DVR. If 9 or more IP Cameras are added, AI video analytics are disabled.
2. Requires LAN and/or internet connection with sufficient bandwidth.
Rear panel connections on the back of this DVR are:
- (8) BNC video inputs
- (1) RCA audio input - for optional add-on security camera microphone
- (1) RCA audio output - for optional speaker to enable two-way talk through mobile apps or PC software
- (1) VGA video output - to connect to computer VGA monitor
- (1) HDMI video/audio output - to connect HDTV up to 4K
- (2) USB ports - front port for mouse, rear port for USB backup
- (1) RS485 port - for connecting third-party PTZ cameras
- (1) RJ45 Network Port - for connecting network cable to router
What's included?
- (1) 8 Camera 4K Security DVR
- (1) Power Supply
- (1) USB mouse
- (1) SATA Cable for Hard Drive
- (1) Free access to on-line knowledge base and software
Specifications
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Outputs | 1 HDMI (up to 4K), 1 VGA (1080P) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Resolution | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grid Displays | 1, 4, 8, 9, 16 Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
On Screen Display | Camera Title, Time & Date Stamp, Video Loss Alert, Motion Event, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis, Smart Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm inputs | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Relay Outputs | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Playback | 1, 4, 9 Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search Mode | Time /Date, Alarm, Event Detection and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Mode | USB Flash Drive, Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal HDD | 1 SATA Port, up to 16TB capacity | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | (1) USB 2.0, (1) USB 3.0 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232 | None | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 Port, for 3rd Party PTZ Control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3rd Party IP Camera Support | Avalonix, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Input | 8 Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Signals | HDCVI, HDTVI, AHD, Analog (CVBS) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input | Up to 16 Channels, each channel up to 8MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio In/Out | 1 in, 1 out RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk | Reuse audio in/out RCA | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265+/H.265, H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution | 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Live Display | CVI: 4K up to 30 fps; 6MP up to 20 fps; 5MP up to 25 fps; 4MP/1080P/720P up to 30 fps |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Rate |
Main stream: 4K 8MP (1-7fps), 6MP (1-10fps), 5MP (1-12fps), 4K-N/4MP/3MP (1-15fps), 4M-N/1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1-30fps) Sub stream: 960H (1-15fps), D1/CIF/QCIF(1-30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Bit Rate | 32Kbps - 6144Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Record Rate | Dependent on camera up to 8MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Record Bandwidth | 128 mbps, up to 4mbps bit rate per channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | Manual, Schedule (Regular, Continuous), Event Based (Video detection: Motion Detection, Smart Detection, Video Loss, Tampering), Alarm, Stop | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Interval | Pre-record: 1-30 sec, Post-record: 10- 300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record File Lengths | 1-60 min (default: 60 min) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Motion Detection | 8 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tripwire and Intrusion | 8 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | 2 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Ports | 1 RJ-45 Port (1000Mbps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Function | HTTP, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Avalonix IP camera, DVR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max User Accounts | 64 users, Max. 5 at the same time | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Onvif | ONVIF 22.12 (Profile T/S/G) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | DC12V 2A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 10W (Without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | +14°F – +131°F, 0-90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 12.8" x 10" x 2.2" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 2.7lbs (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Flat table top / shelf |
Recording Resolutions | 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P |
---|---|
Total Incoming IP Bandwidth | 128 Mbps |
Total IP Recording Bandwidth | 128 Mbps |
eSATA Port | None |
USB Ports | (1) USB 2.0, (1) USB 3.0 |
Video Outputs | (1) HDMI, (1) VGA |
Power Input | 12V DC |
Rackmountable | No |
BNC Recording Frame Rate | 4K 7fps, 6MP 10fps, 5MP 12fps, 4K-N / 4MP 15fps, 4M-N / 1080P / 720P / 960H / D1 / CIF 30fps |
Number of Audio Inputs | Total 16, (1) RCA, (8) HDCVI, (8) IP or (16) IP |
Encoding Supported | H.264, H.265 |
Number of PoE Inputs | None, uses network for connection |
Max Hard Drive Capacity | 1HDD, 16TB |
Hot Swap HDD | No |
RAID Redundancy | No |
Warranty | 1 Year |
Recorder Type | DVR Pentabrid Type XVR |
CPU | Embedded Dual Core |
Total Cameras Supported | 16 |
Supported Camera Signals | Analog, HDCVI, TVI, AHD, IP |
Number of BNC Inputs | 8 |
Number of IP Cameras Supported | 8 |
Total PoE Power | No Built-in PoE Ports |
Return Policy | 30 Days Return Policy |
Brand | Avalonix |
