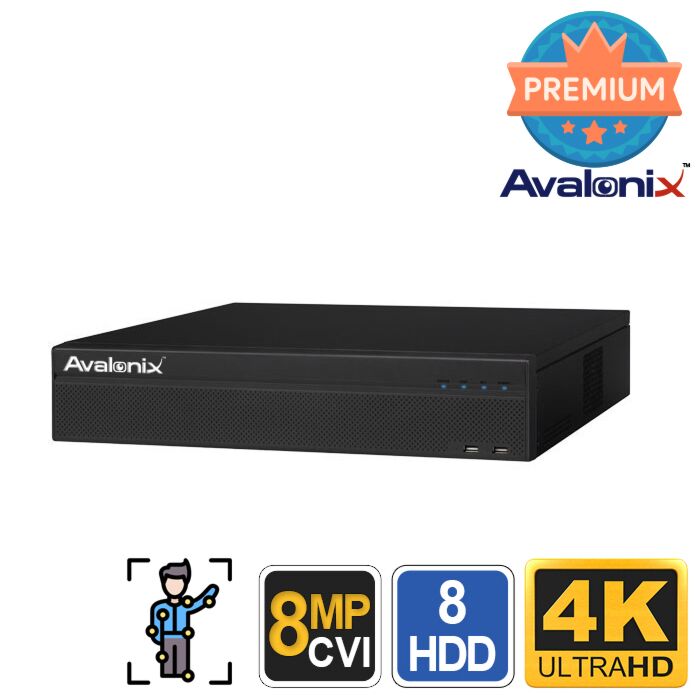

32 Channel 4K DVR XVR, Enterprise
- 4K over Coax DVR
- 32 Camera Pentabrid DVR XVR
- Records Total of 32 Channels
- Records Analog, HDCVI, TVI, AHD Cameras
- Supports up to 4K IP Cameras
- Supports up to 8MP Analog Cameras
- 16 Audio Inputs
- Smart Motion Detection over BNC
- Up to 128TB, 8HDD Capacity
- HDMI/VGA/BNC Video Out
- HDMI Spot Out
This state-of-the-art 32-channel 4K is the latest addition to our Premium Series of 4K DVR recorders. It is the perfect choice for customers looking to upgrade from their old analog DVR or those who want to build a new system with HD security cameras. As
our latest generation of security camera recorders, this 32-camera system is classified as a Pentabrid DVR, also known as an XVR, meaning it can record up to five different types of video signals.
You can record the following signal types with this XVR:
- HDCVI - Choose from our selection of HD analog security cameras with up to 4K 8MP resolution. Our HD over Coax cameras allow for PTZ controls (where available) or audio (with built-in microphones) to be sent over coax wire.
- AHD - Our 4-in-1 analog cameras offer AHD signal output, but it is not very popular in the USA.
- TVI - Our 4-in-1 analog cameras also support TVI signal output.
- IP Cameras - Select from any of our Premium Series IP cameras up to 12 MP resolution, guaranteed to be compatible with our Premium Series DVRs. The XVR supports a total of 128 Mbps of IP camera encoding bandwidth.
- Analog Resolution Cameras - These standard-definition security cameras (aka CVBS) are likely what you already have if you're upgrading to HD from an old CCTV system.
This 32-camera video recorder can support any combination of the above five camera signals up to 32 channels. The recorder allows you to change the channel type for each channel so that you can have a mix of cameras. Click here to see how it's done. You can switch channels between coax and IP input. For IP cameras, you will need a PoE switch to power the cameras and send video over your local computer network from the cameras to the DVR.
What sets this 32-camera DVR apart is its ability to support IP cameras on each channel. Don't believe our competitors when they claim to support more than 2–8 IP cameras on their 32 camera DVRs.
Take advantage of the selection of 8MP 4K HD Coax cameras listed below with this 4K DVR!
If you're looking for the best recording quality while keeping your old analog cameras, you can even use our 12MP IP cameras with this XVR!

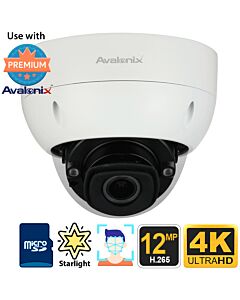

- 12MP 4K Ultra HD IP Camera, 4X Zoom, Facial RecognitionSpecial Price $899.99 Regular Price $1,299.99
You can view all 32 cameras simultaneously using the video outputs (HDMI or VGA) on the back of the DVR or all cameras on one screen on a PC using our central monitoring software for the Premium Series products from Avalonix.
In addition to 32 camera video inputs, this DVR features 16 analog audio inputs to accommodate security cameras with microphones or add-on security microphones. Adding a security camera with a microphone is simple using the BNC inputs on the back of the DVR. This recorder also supports audio over the HDCVI signal, allowing you to use one of our security camera with built-in microphone to capture video and audio over the coax wire without needing to install external microphones.
This 32 camera XVR boasts advanced AI analytics, including Smart Motion Detection, Digital Tripwire, Intrusion Detection, and Face Detection. You can employ Smart Motion Detection on all 32 channels, which is more adept at detecting humans and vehicles compared to traditional video-based detection while avoiding recording irrelevant objects like leaves, insects, or shadows. Alternatively, on up to 12 BNC channels, Tripwire and Intrusion Detection capabilities are available, allowing you to refine video event detection utilizing the AI technology this DVR provides. The XVR is compatible with our Premium Series IP cameras and can record video analytics on all IP camera channels. Although we guarantee compatibility with the IP cameras1 we offer, you may also be able to use some third-party cameras from our IP camera compatibility list, but event detection/analytics from 3rd party cameras will not work.
Furthermore, the XVR supports Face Detection on up to 6 BNC channels, enabling the detection and recording of faces present in the camera's view. This feature enhances security by ensuring crucial events are captured and recorded in areas where individuals must pass through entrances, exits, or pathways. In order to effectively capture a face, the face must occupy at least 50% of the camera's field of view.
This 2U full-size, high-capacity DVR is perfect for customers looking for a video recorder with ample video storage space. It can hold up to eight internal hard drives, each with a capacity of up to 16 TB, for a total of 128 TB of storage space. Remote viewing, motion detection, motion-activated alerts, and intelligent event detection come standard on all our professional DVR recorders.
With your purchase, you'll receive FREE free technical support for the life of the product, as well as FREE iPhone, iPad, Android, and Windows/Mac apps. Check out our apps in action here.
Features
- 32 Channel Digital Video Recorder
- Pentabrid DVR technology supports HDCVI, AHD, TVI, IP, and Analog cameras
- H.265+ and H.264+ Video Encoding
- H.265+ uses scene selective encoding to reduce bandwidth up to 75% compared to standard H.264
- Real Time Live Display and Recording
- Main Stream and Sub Stream Dual Stream Recording
- 32 Security Camera BNC Video Inputs
- 16 Audio Inputs (BNC type)
- Capable of recording all 32 channels being security cameras with integrated audio
- Selectable resolution, frames per second, bit rate for each camera
- Selectable HD Over Coax recording resolutions: 8MP, 4K-N, 6MP, 5MP, 4MP, 4M-N, 3MP, 1080P, 1080N, 720P, 960H, D1
- Selectable IP Camera recording resolutions: 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, CIF
- FREE Windows / Mac Central Monitoring Software for viewing multiple systems over the network
- FREE Phone Apps for remote viewing on iPhone, iPad, and Android devices
- Supports up to 8 internal SATA hard drives, 16TB each
- 128TB Total Storage Capacity
- Pentaplex operation allows you to carry out multiple tasks on the DVR simultaneously
- Advanced User Rights Management: Supports multiple user accounts with selectable authorization levels
- Easy to use DVR menu featuring point and click navigation (mouse included)
-
Video Analytics
- Smart Motion Detection (SMD) on up to 32 BNC channels support human body and vehicle filtering
- Tripwire, or Intrusion Detection on up to 12 BNC channels
- Face Detection - detect and record when a face is present on up to 6 BNC channels. Up to 12 face images per channel
- Or take advantage of AI Video Analytics or Event Detection on any IP channel1
-
Full set of controls (all free of charge) when remotely viewing over internet using a computer:2
- View Live Video from all 32 Cameras in a grid or each camera individually
- Playback recorded video from cameras in a grid or each camera individually
- Backup video segments over internet on to your computer
- Bandwidth Management for slow internet connections so smaller images are displayed faster
- Supports up to 20 remote viewers simultaneously
- Motion activated Email alerts or push notifications to mobile devices without monthly charges
- P2P, DDNS Support
-
Multiple Video Outputs
- (1) 4K High Definition HDMI - Main Out
- (1) VGA 1080P connection - Main Out
- (1) BNC connection - Main Out at 480P supports analog non-HD resolution cameras only
- (1) 1080P High Definition HDMI - Spot Out for live camera view
- 4 USB ports for easy video backup to a USB flash drive
- Compatible with Network PTZ Controller
- 2x RJ45 Gigabit Network Ports
- 2U Rackmount case
- ONVIF Support
1. Must be a compatible Avalonix Premium Series IP camera
2. Requires LAN and/or internet connection with sufficient bandwidth.
Connectors on back of DVR
- (32) BNC video inputs
- (16) BNC audio inputs
- (1) BNC audio output
- (1) VGA video output
- (2) HDMI video/audio output
- (1) BNC video output - only for analog resolution cameras
- (4) USB ports
- (1) RS485 Port
- (1) Alarm input/output block
- (2) RJ45 Ethernet
What's Included?
- (1) 32 Channel 4K DVR
- (1) Power Cord
- (1) Mouse
- (8) SATA Cables
- (1) Rackmount ears
Specifications
System | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Main Processor | Embedded Processor | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating System | Embedded Linux | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Outputs | 1 HDMI (Main), 1 VGA, 1 BNC, 1 HDMI (Spot) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Output Resolution |
HDMI 1: 3840×2160, 2560×1440, 1920×1080, 1280×1024, 1280×720 HDMI 2 / VGA: 1920×1080, 1280×1024, 1280×1024, 1280×720 |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Grid Displays | 1, 4, 8, 9, 16, 25, 36 Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
On Screen Display | Camera Title, Time & Date Stamp, Video Loss Alert, Motion Event, Recording | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Detection | Motion Detection, Motion Zones: 396 (22 x 18), Video Loss, Tampering and Diagnosis, Smart Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Trigger Events | Recording, PTZ, Tour, Video Push, Email, FTP, Snapshot, Buzzer and Screen Tips | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm inputs | 16 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Alarm Relay Outputs | 6 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Video Playback | 1, 4, 9, 16 channels for a total of 8MP total at one time | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Search Mode | Time /Date, Alarm, MD and Exact Search (accurate to second) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Playback Function | Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera, Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Backup Mode | USB Flash Drive, Network | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Internal HDD | 8 SATA Ports, 16TB ea. Total 128TB | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
eSATA | N/A | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
USB | (2) USB 2.0 Front, (2) USB 3.0 Rear | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS232 | 1 Port for Keyboard | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
RS485 | 1 Port for 3rd Party PTZ Control | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
3rd Party IP Camera Support | Avalonix, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic, Pelco, Samsung, Sanyo, Sony, Videotec, Vivotek, and more | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio and Video | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Input | 32 Channels up to 8MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Signals | HDCVI, TVI, AHD, Analog CVBS | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Camera Input |
32 Channels (shared with BNC channels) up to 8MP Supports compatible IP cameras from CCTV Camera World Only |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Audio In/Out | 16 in /1 out BNC, or 32 in over HDCVI | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Two-way Talk | Reuse audio in/out BNC | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Compression | H.265+, H.265, H.264+/H.264 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Resolution |
BNC: 8MP, 6MP, 5MP, 4MP, 1080P, 720P, 960H, D1, HD1, BCIF, CIF, QCIF IP: 12MP, 8MP, 6MP, 5MP, 4MP, 3MP, 1080P, 720P, CIF |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Record Rate |
Main stream: 8MP (1-7fps), 6MP (1-10fps), 5MP (1-12fps), 4K-N / 4MP / 3MP(1-15fps), 4M-N/1080P/720P/960H/D1/HD1/BCIF/CIF/QCIF (1-30fps) Sub stream: 960H(1-15fps), D1/CIF/QCIF(1-30fps) |
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
BNC Bit Rate | 32Kbps - 6144Kbps Per Channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Record Rate | Dependent on camera up to 8MP | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
IP Record Bandwidth | 128 mbps, up to 4mbps bit rate per channel | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Mode | Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Video Loss, Tampering), Alarm, Stop, Smart Detection | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record Interval | Pre-record: 1-30 sec, Post-record: 10-300 sec | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Record File Lengths | 1-60 min (default: 60 min) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
AI Video Detection | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Motion Detection | 32 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Tripwire and Intrusion | 12 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Face Detection | 6 BNC Channels | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Ports | 2 RJ-45 Ports (1000Mbps) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Network Function | HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DHCP, DNS, IP Filter, PPPoE,DDNS, FTP, Alarm Server, P2P,IP Search (Supports Avalonix IP camera, DVR) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Max User Accounts | 64 users, Max. 20 at the same time | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Smart Phone | iPhone, iPad, Android | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Onvif | ONVIF 16.12, CGI Conformant | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operation | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Supply | AC 100–240V, 50/60HZ | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Power Consumption | 30W (Without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Operating Conditions | +14°F - +131°F, 0-90% RH | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Dimensions | 17.3" x 18.2" x 3.7" | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Net Weight | 15.5 lbs (without HDD) | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Installation | Flat table top / shelf, 2U Rack-mountable |
Number of PoE Inputs | None, uses network for connection |
---|---|
Max Hard Drive Capacity | 8HDD, 128TB |
RAID Redundancy | No |
Warranty | 1 Year |
Recorder Type | DVR Pentabrid Type XVR |
CPU | Embedded Dual Core |
Total Cameras Supported | 32 |
Supported Camera Signals | Analog, HDCVI, TVI, AHD, IP |
Number of BNC Inputs | 32 |
Number of IP Cameras Supported | 32 |
Hot Swap HDD | No |
Encoding Supported | H.264, H.265 |
Rackmountable | Yes, 2U |
Recording Resolutions | 12MP, 8MP, 4K, 6MP, 5MP, 4MP, 3MP, 1080P, 1.3MP, 720P |
Number of Audio Inputs | 16 BNC |
Total PoE Power | No Built-in PoE Ports |
BNC Recording Frame Rate | 4K 7fps, 6MP 10fps, 5MP 12fps, 4K-N / 4MP 15fps, 4M-N / 1080P / 720P / 960H / D1 / CIF 30fps |
Power Input | 110-220V AC |
Video Outputs | (2) HDMI, (1) VGA, (1) BNC |
USB Ports | (2) USB 2.0, (2) USB 3.0 |
eSATA Port | None |
Total IP Recording Bandwidth | 128 Mbps |
Total Incoming IP Bandwidth | 128 Mbps |
Encoding Support Detail | H.265+, H.265, H.264+, H.264, MJPEG |
